Phantom 3500
FREE SHIPPING
The Phantom Series combines capacity with flexible installation options with customizable blower configurations, all within a self-contained ducted unit. By removing the exterior metal panels, the Phantom’s powerful can be reoriented to the right, left, or top of the unit.
Features
Optional UV Lighting Technology
Numerous and Flexible Ducting Options
Remote KDT Plus Controller and Thermostat
Liquid Temperature Measuring Bottle Probe
Quiet Operation
Quick-to-Access Components for Ease of Maintenance
Corrosion Resistant Drip Tray
Suitable for Operation in Ambient Temperatures as High as 110°F
Black Powder-Coated Paint Scheme
Product Specifications
Cellar Size
Approx. 800 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
@85°F condenser intake: 4060
Dimensions
37″L x 15.75″W x 15.75″H (without Duct Plenums)
48”L x 15.75”W x 22.75”H (Duct Plenums on Top of Unit)
48”L x 22.75"W x 15.75”H (Duct Plenums on Side of Unit)
Drain Line
1/2″ ID Clear Plastic Tubing
Manuals and Warranty
Phantom Series 24V Conversion Owner’s Manual
FREE SHIPPING
The Phantom Series combines capacity with flexible installation options with customizable blower configurations, all within a self-contained ducted unit. By removing the exterior metal panels, the Phantom’s powerful can be reoriented to the right, left, or top of the unit.
Features
Optional UV Lighting Technology
Numerous and Flexible Ducting Options
Remote KDT Plus Controller and Thermostat
Liquid Temperature Measuring Bottle Probe
Quiet Operation
Quick-to-Access Components for Ease of Maintenance
Corrosion Resistant Drip Tray
Suitable for Operation in Ambient Temperatures as High as 110°F
Black Powder-Coated Paint Scheme
Product Specifications
Cellar Size
Approx. 800 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
@85°F condenser intake: 4060
Dimensions
37″L x 15.75″W x 15.75″H (without Duct Plenums)
48”L x 15.75”W x 22.75”H (Duct Plenums on Top of Unit)
48”L x 22.75"W x 15.75”H (Duct Plenums on Side of Unit)
Drain Line
1/2″ ID Clear Plastic Tubing
Manuals and Warranty
Phantom Series 24V Conversion Owner’s Manual
FREE SHIPPING
The Phantom Series combines capacity with flexible installation options with customizable blower configurations, all within a self-contained ducted unit. By removing the exterior metal panels, the Phantom’s powerful can be reoriented to the right, left, or top of the unit.
Features
Optional UV Lighting Technology
Numerous and Flexible Ducting Options
Remote KDT Plus Controller and Thermostat
Liquid Temperature Measuring Bottle Probe
Quiet Operation
Quick-to-Access Components for Ease of Maintenance
Corrosion Resistant Drip Tray
Suitable for Operation in Ambient Temperatures as High as 110°F
Black Powder-Coated Paint Scheme
Product Specifications
Cellar Size
Approx. 800 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
@85°F condenser intake: 4060
Dimensions
37″L x 15.75″W x 15.75″H (without Duct Plenums)
48”L x 15.75”W x 22.75”H (Duct Plenums on Top of Unit)
48”L x 22.75"W x 15.75”H (Duct Plenums on Side of Unit)
Drain Line
1/2″ ID Clear Plastic Tubing
Manuals and Warranty
Phantom Series 24V Conversion Owner’s Manual
TOUCH DISPLAY
The KDT Digital Touch Display can be installed up to 50ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.
BOTTLE PROBE
The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stores in the cellar than measuring the ambient cellar air.
COMPONENTS PANEL
From the top of the unit, you can access the fan switch and bottle probe port. The unit plugs in to your standard electric outlet for power.
FLEXIBLE INSTALLATION
The Phantom’s powerful blowers can be reoriented to the right, left, or top of the unit. This grants you the option of installing the unit in any ducting configuration that best suits your needs, even in limited space. The supply collar is 8” and the return in 10”.

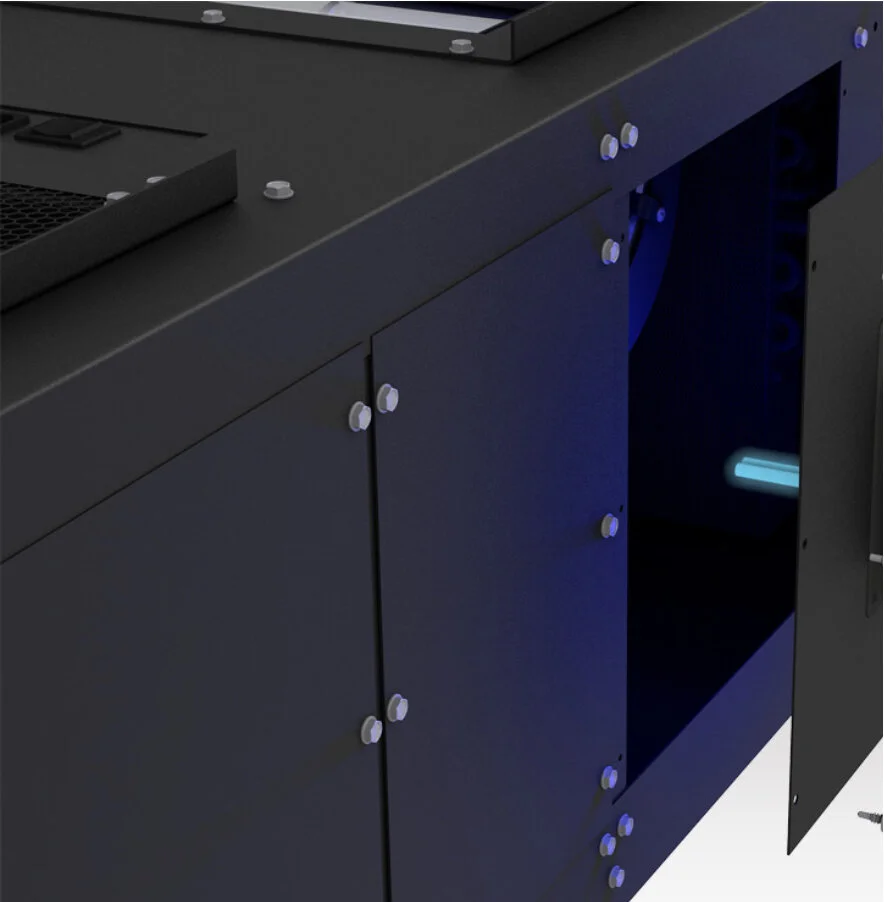

UV LIGHT TECHNOLOGY
Adding the UV light option to a cooling unit increases overall indoor air quality and improves the performance of the unit.
