Platinum Mini Split
FREE SHIPPING
The Platinum Mini Split offers a compact size paired with powerful efficiency, perfect for smaller wine cellars.
Features
Quiet and Efficient Operation
Advanced Electronic Control System

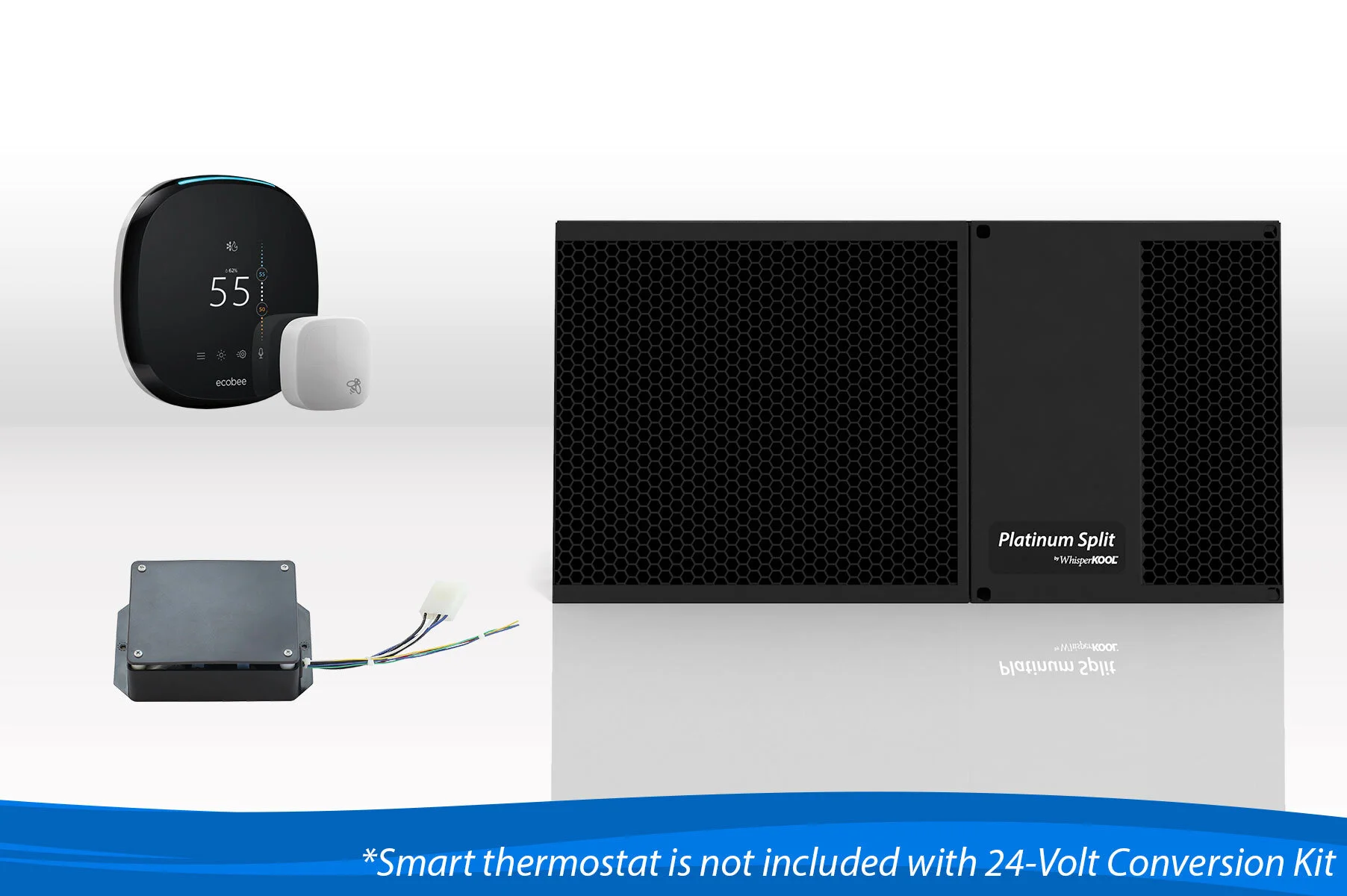

Standard and 24V Thermostat Options Available
Condensing Unit can be Located Outdoors with Exterior Housing
55°F Temperature Differential
KDT Digital Controller and Thermostat with 50ft Range
Product Specifications
Cellar Size
Approx. 500 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
Low Fan Speed @85°F condenser intake (sensible/total): 1666/2141
Medium Fan Speed @85°F condenser intake (sensible/total): 2078/2492
Dimensions

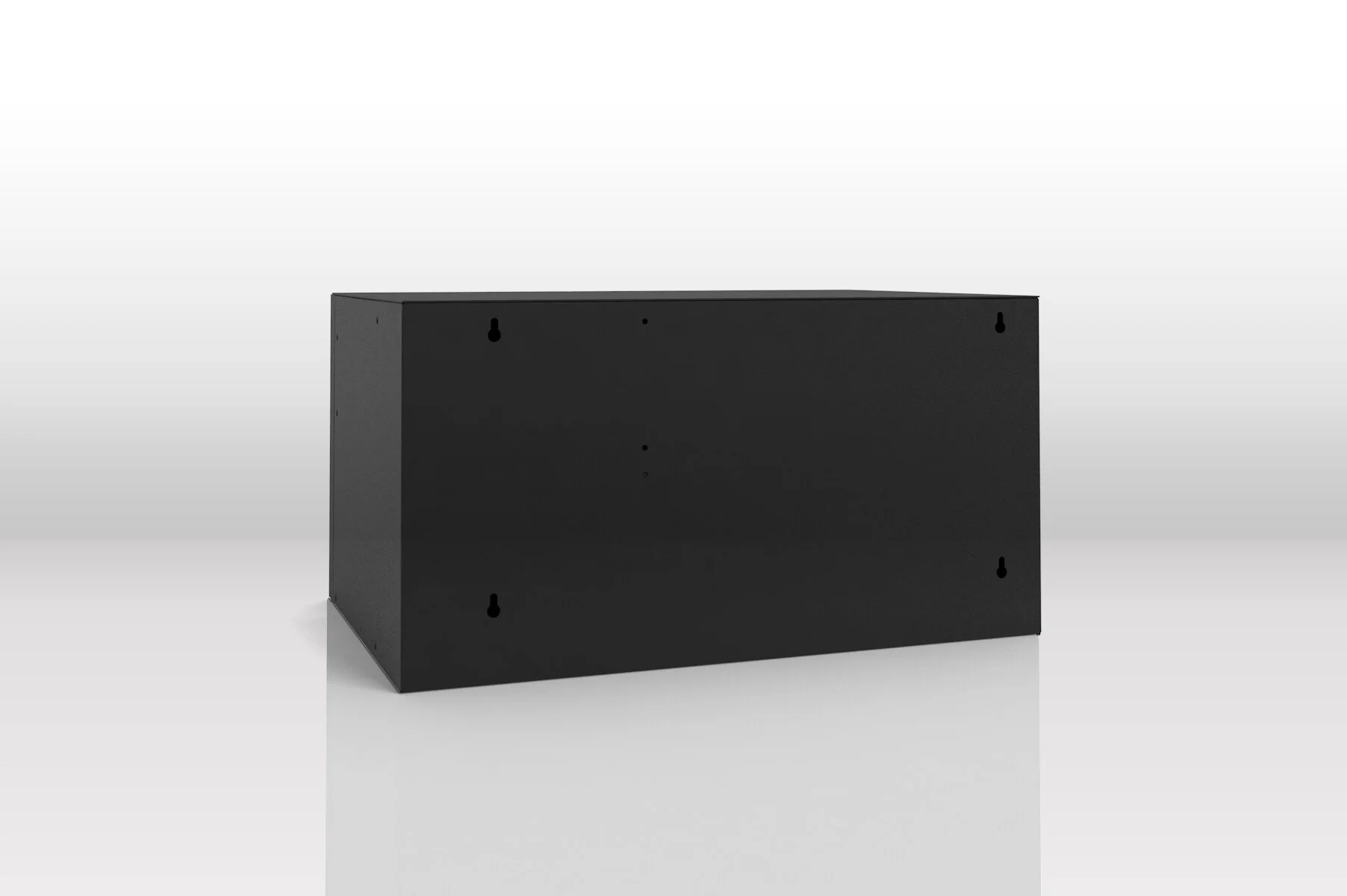

Evaporators: 13”L x 20”W x 10.5”H
110V Condenser: 13.97”L x 15.85”W x 9.86”H
220V H.E. Condenser: 31.18”L x 10.75”W x 21.18”H
Drain Line
1/4″ ID Clear Plastic Tubing
Manuals
Platinum Mini Split 220V H.E. Specs
Platinum Mini Split Owner’s Manual
Platinum Mini Split 24V Conversion Owner’s Manual
IMPORTANT: Warranty Information
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
The checklist may either be submitted online or you can download and email the checklist to warranty@whisperkool.com
FREE SHIPPING
The Platinum Mini Split offers a compact size paired with powerful efficiency, perfect for smaller wine cellars.
Features
Quiet and Efficient Operation
Advanced Electronic Control System
Standard and 24V Thermostat Options Available
Condensing Unit can be Located Outdoors with Exterior Housing
55°F Temperature Differential
KDT Digital Controller and Thermostat with 50ft Range
Product Specifications
Cellar Size
Approx. 500 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
Low Fan Speed @85°F condenser intake (sensible/total): 1666/2141
Medium Fan Speed @85°F condenser intake (sensible/total): 2078/2492
Dimensions
Evaporators: 13”L x 20”W x 10.5”H
110V Condenser: 13.97”L x 15.85”W x 9.86”H
220V H.E. Condenser: 31.18”L x 10.75”W x 21.18”H
Drain Line
1/4″ ID Clear Plastic Tubing
Manuals
Platinum Mini Split 220V H.E. Specs
Platinum Mini Split Owner’s Manual
Platinum Mini Split 24V Conversion Owner’s Manual
IMPORTANT: Warranty Information
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
The checklist may either be submitted online or you can download and email the checklist to warranty@whisperkool.com
FREE SHIPPING
The Platinum Mini Split offers a compact size paired with powerful efficiency, perfect for smaller wine cellars.
Features
Quiet and Efficient Operation
Advanced Electronic Control System
Standard and 24V Thermostat Options Available
Condensing Unit can be Located Outdoors with Exterior Housing
55°F Temperature Differential
KDT Digital Controller and Thermostat with 50ft Range
Product Specifications
Cellar Size
Approx. 500 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
Low Fan Speed @85°F condenser intake (sensible/total): 1666/2141
Medium Fan Speed @85°F condenser intake (sensible/total): 2078/2492
Dimensions
Evaporators: 13”L x 20”W x 10.5”H
110V Condenser: 13.97”L x 15.85”W x 9.86”H
220V H.E. Condenser: 31.18”L x 10.75”W x 21.18”H
Drain Line
1/4″ ID Clear Plastic Tubing
Manuals
Platinum Mini Split 220V H.E. Specs
Platinum Mini Split Owner’s Manual
Platinum Mini Split 24V Conversion Owner’s Manual
IMPORTANT: Warranty Information
A limited 2-year product warranty is offered with all split systems. While the warranty starts at the date of purchase, this warranty is not activated until a Product Warranty Checklist has been submitted and approved by WhisperKOOL.
The checklist may either be submitted online or you can download and email the checklist to warranty@whisperkool.com
TOUCH DISPLAY
The KDT Digital Touch Display can be installed up to 50ft. away from the unit. The KDT is equipped with Advanced System Protection that has alarms to alert you if certain parameters are not met.
BOTTLE PROBE
The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stores in the cellar than measuring the ambient cellar air.
DUCTING OPTIONS
Fully-ducted options are available with the Platinum Split units. If you have a room or space adjacent to the cellar, ducting may be an option for you. Ducting a cooling unit takes it out of sight and significantly reduces noises in the wine cellar.
HIGH-EFFICIENCY CONDENSER
This 220V system is a significantly more energy-efficient system, utilizing 50% less energy, saving on operation cost. It also allows the system to adjust to ambient temperature conditions to maintain the ideal storage conditions for fine wine in cold winter temperatures (as low as -20°F) and hot summer temperatures (up to 120°F).
