Slimline LS
FREE SHIPPING
The new Slimline LS, intended for installations through the wall and above a doorway, has evolved into a unit that can cool two capacities at the flip of a switch.
Features
Condensate Evaporator
Two-Speed Fan Switch
Up to 45% More Capacity
UV Light System Upgrade
Customizable Front Panel
Mountable Above Often Unused Space Above Door
30°F Temperature Differential
Quiet and Efficient Operation
Advanced Electronic Display
Liquid-Temperature-Measuring Bottle Probe
Product Specifications
Cellar Size
Low Fan Speed – Approx. 300 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
Medium Fan Speed – Approx. 650 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
Low Fan Speed – @85°F condenser intake: 2396/1870 (total/sensible)
Medium Fan Speed – @85°F condenser intake: 2612/2158 (total/sensible)
Dimensions
21.64″L x 14.25″W x 22.56″H
Drain Line
1/2″ ID clear plastic tubing (not provided)
Manuals and Warranty
Slimline LS Series Owner’s Manual
FREE SHIPPING
The new Slimline LS, intended for installations through the wall and above a doorway, has evolved into a unit that can cool two capacities at the flip of a switch.
Features
Condensate Evaporator
Two-Speed Fan Switch
Up to 45% More Capacity
UV Light System Upgrade
Customizable Front Panel
Mountable Above Often Unused Space Above Door
30°F Temperature Differential
Quiet and Efficient Operation
Advanced Electronic Display
Liquid-Temperature-Measuring Bottle Probe
Product Specifications
Cellar Size
Low Fan Speed – Approx. 300 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
Medium Fan Speed – Approx. 650 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
Low Fan Speed – @85°F condenser intake: 2396/1870 (total/sensible)
Medium Fan Speed – @85°F condenser intake: 2612/2158 (total/sensible)
Dimensions
21.64″L x 14.25″W x 22.56″H
Drain Line
1/2″ ID clear plastic tubing (not provided)
Manuals and Warranty
Slimline LS Series Owner’s Manual
FREE SHIPPING
The new Slimline LS, intended for installations through the wall and above a doorway, has evolved into a unit that can cool two capacities at the flip of a switch.
Features
Condensate Evaporator
Two-Speed Fan Switch
Up to 45% More Capacity
UV Light System Upgrade
Customizable Front Panel
Mountable Above Often Unused Space Above Door
30°F Temperature Differential
Quiet and Efficient Operation
Advanced Electronic Display
Liquid-Temperature-Measuring Bottle Probe
Product Specifications
Cellar Size
Low Fan Speed – Approx. 300 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
Medium Fan Speed – Approx. 650 cu. ft. when cellar is fully insulated and sealed with a proper vapor barrier (each wine cellar is unique and has specific cooling requirements; heat load calculations should always be performed prior to selecting a cooling unit).
BTU/h Rating
Low Fan Speed – @85°F condenser intake: 2396/1870 (total/sensible)
Medium Fan Speed – @85°F condenser intake: 2612/2158 (total/sensible)
Dimensions
21.64″L x 14.25″W x 22.56″H
Drain Line
1/2″ ID clear plastic tubing (not provided)
Manuals and Warranty
Slimline LS Series Owner’s Manual
DIGITAL CONTROLLER
The thermostat is located on the front of the unit. It is equipped with Advanced System Protection that has alarms to alert you if certain parameters aren’t met.
BOTTLE PROBE
The unit accurately measures the temperature of wine in the cellar using a liquid temperature measuring probe. Measuring the temperature of a liquid is a more direct and accurate reflection of the temperature of the wines stores in the cellar than measuring the ambient cellar air.

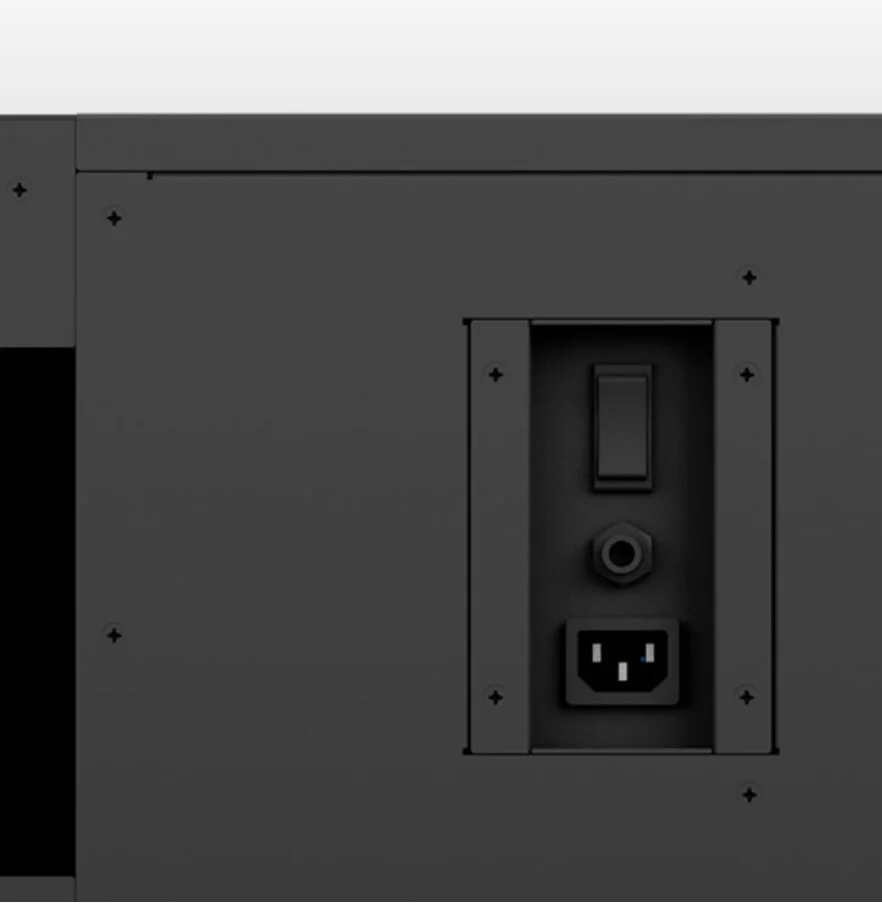

SIDE COMPONENTS
Access from the side panel the fan switch and bottle probe port. The unit plugs in to your standard electrical outlet for power.
NEW INTERNAL PARTS
Robust centrifugal blowers, larger coils for greater system capacity, and an improved condensate management system.
UV LIGHT TECHNOLOGY
Adding the UV light option to a cooling unit increases overall indoor air quality and improves the performance of the unit.
TWO CAPACITIES
At the flip of a switch, you can change the units capacity rating by adjusting the fan speed located on the side of the unit.
Questions? Connect with a Rhino Cooling Specialist
